The Mango Power mPanel Pro is an electrical control and power distribution panel designed to connect compatible Mango Power energy storage systems to selected household electrical loads. Developed for use with the Mango Power Union and Mango Power E, it helps manage the supply of electricity between the utility grid and a backup power source.
Designed for home backup power applications, the mPanel Pro provides a central connection point for compatible power equipment and designated load circuits. Its integrated circuit selection controls allow users to select whether four output circuits receive power from the utility grid or the backup system. This provides a convenient way to manage selected household loads when using a compatible Mango Power configuration.
With support for 120V and 240V mains input, dual 30A output ports, dual 30A backup input ports and four 15A load output circuits, the Mango Power mPanel Pro offers a practical distribution solution for compatible residential backup power installations.
One of the main functions of the Mango Power mPanel Pro is to switch the power supply for selected electrical circuits between the utility grid and a compatible backup power system. This functionality helps integrate a supported energy storage system into a home's designated electrical loads.
The panel features rotary switches that allow the power source for four output circuits to be selected. When configured correctly, these controls make it possible to choose between utility power and backup power according to the system's operating requirements.
This arrangement is useful for households that want to maintain access to selected electrical circuits when utility power is unavailable. The actual appliances that can be supported depend on the connected backup system, its available output power and the electrical requirements of the installation.
The mPanel Pro is specifically designed to work with compatible Mango Power Union and Mango Power E energy storage systems. It provides the electrical connections required to integrate supported equipment with designated household loads.
For a compatible installation, the panel can serve as the distribution interface between the energy storage system, utility supply and selected output circuits. Its multiple input and output connections provide flexibility for supported system configurations.
Compatibility and the correct wiring arrangement must be confirmed before installation. The mPanel Pro is not a standalone battery or power generator; it is a distribution and control accessory that requires compatible power equipment.
The Mango Power mPanel Pro supports 120V and 240V mains input, with a maximum mains input current rating of 50A. This input configuration is intended for compatible electrical systems and installations that meet the product's requirements.
The panel's electrical ratings help installers determine whether the unit is appropriate for a particular application. The complete installation must account for the local electrical supply, circuit ratings, compatible backup equipment and applicable electrical codes.
The mPanel Pro features multiple electrical connection points to support compatible home backup configurations. It includes two 30A output ports, two 30A backup input ports and four 15A load output circuits.
These connection options allow the panel to accommodate supported system arrangements while providing individual circuit selection for the four load outputs. All connections must remain within the specified ratings and the requirements of the compatible equipment.
The Mango Power mPanel Pro provides four load output circuits, each rated at up to 15A. Its rotary switches allow the power source for these circuits to be selected between the utility grid and backup power.
This circuit-level control can help households prioritise selected loads during an outage. Depending on the installation, designated circuits may be connected to appliances or equipment that the household considers important to keep powered.
Before selecting appliances for backup, users should consider their electrical loads, starting currents and total power requirements. The available backup capacity depends on the connected Mango Power system and must not exceed the applicable circuit or equipment ratings.

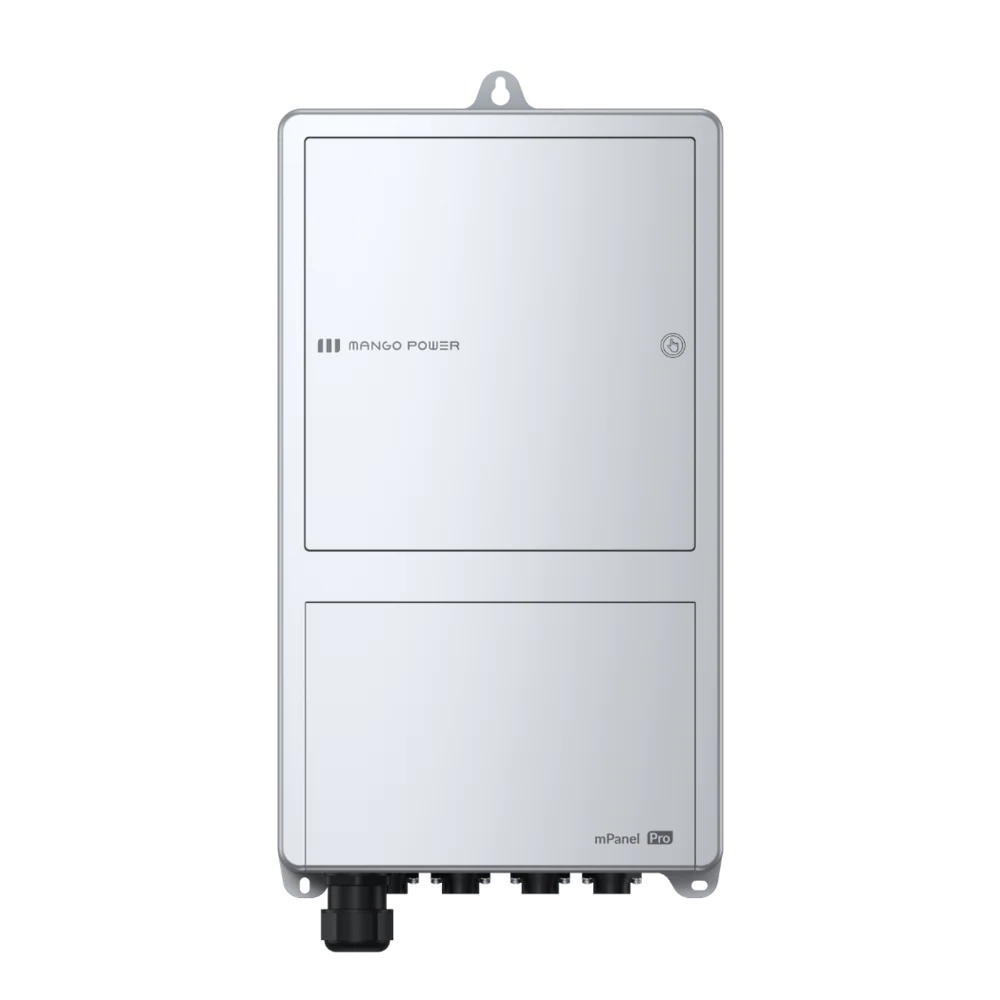

The mPanel Pro measures 554 × 280 × 108mm, providing a compact enclosure for its electrical control and distribution functions. Its dimensions help installers plan the required mounting area and cable routing for a compatible installation.
Appropriate mounting clearance, cable access and environmental protection should be considered when choosing an installation location. Follow the manufacturer's installation instructions and all applicable electrical safety requirements.
The Mango Power mPanel Pro has a specified working temperature range of -10°C to 45°C. The installation environment should remain within this range to meet the manufacturer's stated operating conditions.
Choosing a suitable installation location and following the product's ventilation, clearance and environmental instructions are important parts of a reliable electrical installation.
The Mango Power mPanel Pro Home Backup Power Distribution Panel is designed for homeowners integrating a compatible Mango Power energy storage system with selected household circuits. Its multiple electrical connections and four-circuit source selection provide a structured way to manage utility and backup power within a supported installation.
Whether you are planning a home backup power installation or expanding a compatible Mango Power setup, the mPanel Pro provides the electrical control and distribution functions required for supported configurations. It is intended to work alongside compatible power equipment rather than operate as an independent power source.
Important: The Mango Power mPanel Pro connects to mains electrical circuits and must be installed, wired and commissioned by a suitably qualified electrician in accordance with the manufacturer's instructions and applicable local electrical regulations. Turn off the power before wiring, ensure proper grounding and verify compatibility with the intended backup equipment before installation.
Always confirm circuit ratings, system compatibility and the intended load configuration before use. Refer to the manufacturer's documentation for detailed installation instructions, wiring requirements and safe operation.
Review this accessory or solar-system listing for exact contents and model compatibility. A cable, gateway, or panel does not include a battery station unless stated.
Confirm voltage, continuous and startup demand, connectors, and approved accessories. Added battery capacity extends runtime, not inverter output. Solar arrays must meet voltage and current limits. Do not mix brands without explicit manufacturer approval.
Fast AC charging requires the specified cable and supply; the single-station 1.5-hour claim is not a full-kit or solar recharge guarantee. Home circuits require approved integration equipment and qualified installation. mSocket Pro is not a home transfer panel. Review component-specific warranty terms and exact package contents.
